| Brand Name : | NEW |
| Model Number : | C5280 |
| Certification : | ISO9001 |
| Price : | 30000-250000 USD |
| Delivery Time : | 2 months after deposit payment |
| Payment Terms : | TT/ LC |
| Supply Ability : | 20 sets / month |

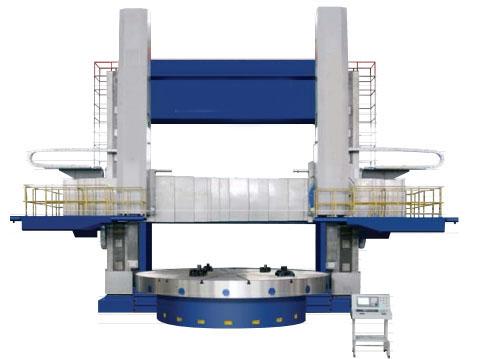

Big Vertical Lathe for Roughing Large Size Metal Parts
Parameters:cnc vertical lathe
Specification | Unit | CK5280 |
Max turning diameter | mm | 8000 |
Max height of workpiece | mm | 4000 |
Max weight of the workpiece | t | 120 |
worktable diameter | mm | 6000 |
Steps | Variable | |
Worktable Speed range | r/min | 0.4~40 |
Max.torque of worktable | n.m | 280000 |
Max.horizontal travel of knife rest | mm | -50~4400 |
Ram section size | mm | 280*280 |
Max.cutting force of knife rest (right) | N | 70000 |
Max.cutting force of knife rest (left) | N | 95000 |
Size of knife holder(w*h) | mm | 60*60 |
Feeding steps for both left and right vertical knife rest | variable | |
Feeding range of left and right vertical knife rest | mm/min | 0.1-500 |
Rapid movement speed of both left and right knife rest | mm/min | 300 |
Beam lifting speed | mm/min | 300 |
Beam lifting motor power | Kw | 22 |
Main motor power | Kw | 120 |
Machine weight（About） | t | 270 |
Overall Dimension (l*w*h) | mm | 10400*8500*7500 |
Pictures:
