| Brand Name : | baili |
| Certification : | CE/ISO9001 |
| Model Number : | ck5123 |
| Price : | 50000~90000 |
| Delivery Time : | 60 to 90 days |
| Payment Terms : | T/T, L/C |
| Supply Ability : | 20 sets/month |

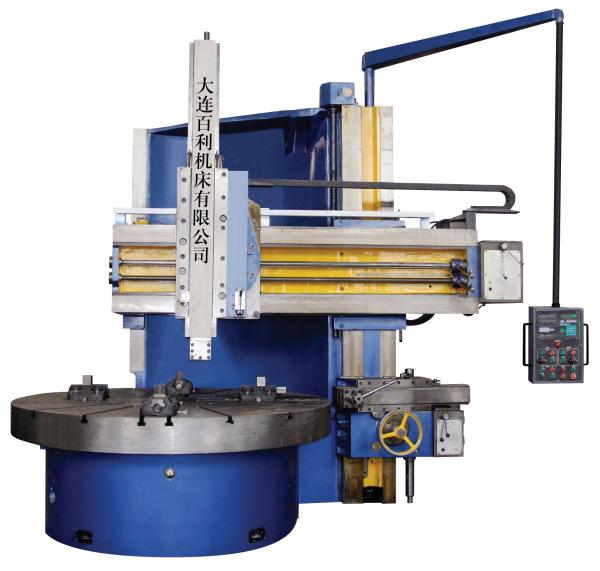

Rough Metal Cutting Machine Tool Single Column Vertical Lathe
Main functions and features:
This CK5123 vertical machinery tools is suitable for motor, water generator, aviation, mining machinery, metallurgy and common machinery industries machining cylindrical turning and boring, tapering and grooving roughly and finely etc.
Specifications:
Models | Unit | C5123D/CX5123D |
Control type | Conventional lathe | |
Max.turning diameter | mm | 2300 |
Max.height of workpiece | mm | 1300/1600/1800 |
Max. weight of workpiece | t | 8 |
Machine weight | t | 19.5/20.5/21.5 |
Type | Single column vertical style | |
worktable diameter | mm | 2000 |
Rotary speed of worktable | r/min | 2.5~80 |
Steps | step16 | |
Vertical ram travel horizontal | mm | 1150 |
Vertical ram travel vertical | mm | 800 |
Side ram travel horizontal | mm | 730 |
Side ram travel vertical | mm | 1150/1450/1650 |
Beam travel | mm | 840/1140/1340 |
Beam moving speed | mm*min | 440 |
Max. size of tooling | mm*mm | 30*40 |
turning degree of vertical slide | ° | ±30 |
Feeding range and rates of tool rest | mm/min | 0.8~86 level 12 |
Rapid moving speed of tool rest | mm/min | 1800 |
power of main motor | kw | 30 |
Machine Size (L*W*H) | mm | 3300*3280*4000(4300/4500) |
Workshops:
Product Details:
We can provide you vertical lathe, milling machine, boring machine of all kinds with high-quality.
We are factory,so our price is competitive and resonable.
Remark:We are also able to design and manufacture goods according to your requirments.
Welcome to our office and factory.
|
|
