| Brand Name : | NEW |
| Model Number : | CK5116 |
| Certification : | ISO9001 |
| Price : | 30000~80000 USD |
| Delivery Time : | 2 months after deposit payment |
| Payment Terms : | TT/ LC |
| Supply Ability : | 20 sets / month |
Vertical Lathe Machine Price Low Cost VTL
Breif Introduction:cnc vertical lathe
a. CK5116 single column cnc machine tools is cnc vertical lathe aimed at processing inner round and outer round of large workpiece and plane.
b. The metal work lathe is suitable for high-speed steel and hard alloy steel cutter, processing black metal, non-ferrous metal and some non-metallic materials.
c. The following process can be finished with the threading lathe machine: rough and fine turning of the inner and outer cylinder, plane and conical surface, grooving, severing and simple surface.
Parameters:cnc vertical lathe
| Item | Unit | CK5116 |
| Control type | CNC system | |
| Max.turning diameter | mm | 1600 |
| Max.height of workpiece | mm | 1200/1400/1600 |
| Max. weight of workpiece | t | 5 |
| Machine weight | t | 30 |
| Product type | metal work lathe | |
| worktable diameter | mm | 1400 |
| Speed range of worktable | r/min | 5~160 |
| Steps | two /four gears no steps | |
| Max. worktable torque | kn.m | 25 |
Travel of vertical ram horizontal | mm | 915 |
| Travel of vertical ram vertical | mm | 800 |
| Travel of side ram horizontal | mm | 630 |
| Travel of side ram horizontal | mm | 1100/1300/1500 |
| Beam travel | mm | 850/1050/1250 |
| Beam moving speed | mm/min | 440 |
| Max. size of tooling | mm*mm | 30*40 |
| turning degree of vertical slide | ° | ±30 |
| Feeding range and rates of tool rest | mm/min | 0.1~2000 extremely |
| Rapid moving speed of tool rest | mm/min | 1800 |
| power of main motor | kw | 30 |
| Machine Size (L*W*H) | mm | 2660*2740*3928(4128/4328) |

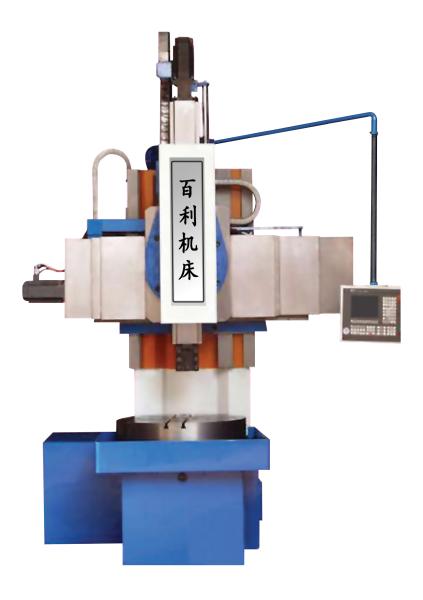

Pictures:
China Factory Single Column Vertical CNC Lathe Machine Tooling
|
|
