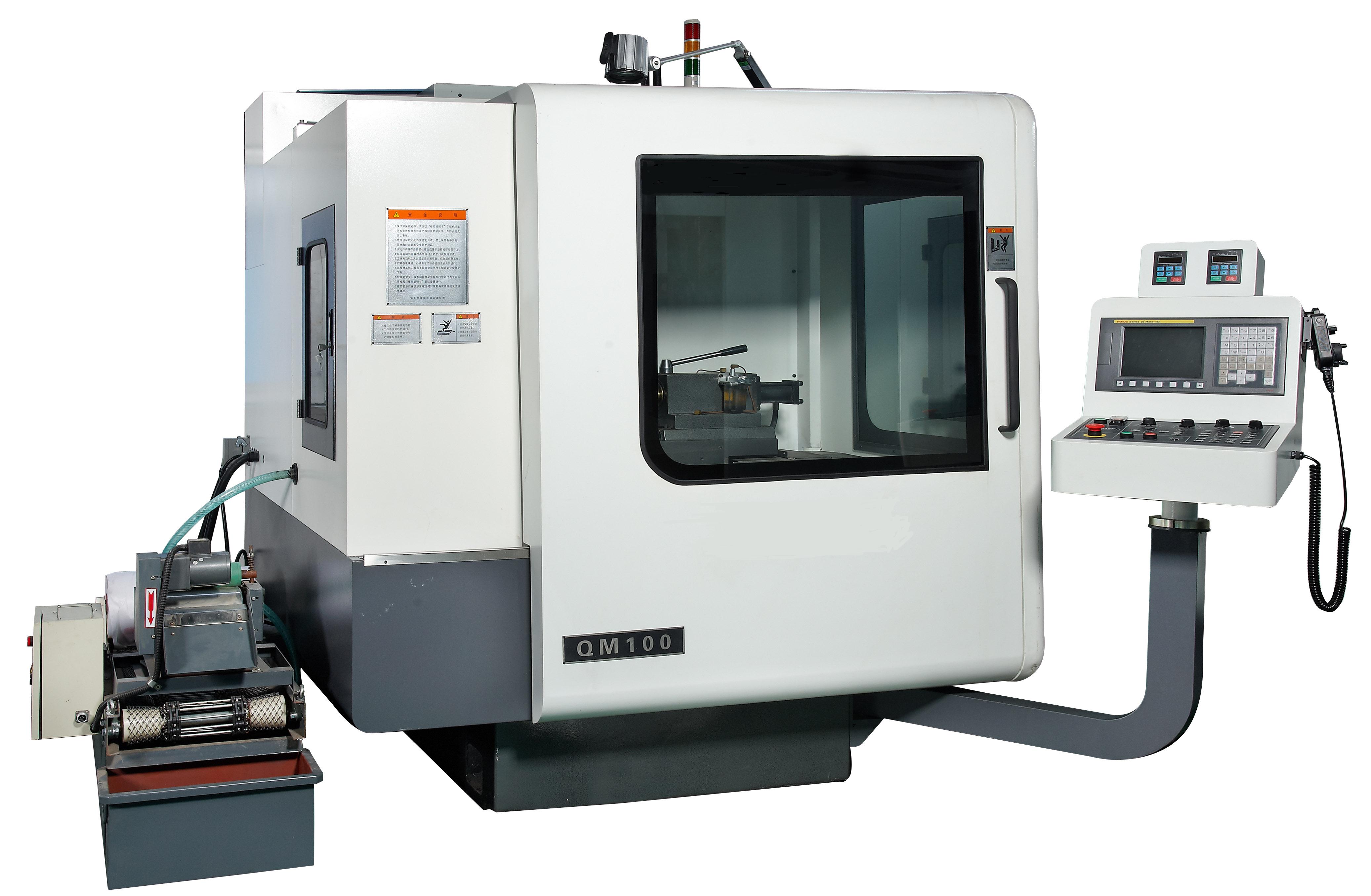

Fanuc Controlled CNC Precision Machines for Grinding Valves
Description:
1. The CNC spherical grinding machine developed by our company has remarkable quality.The configuration of this machine is artistic and elegant.We update and improve our products according to the proposals from our customers on and on.Within a long history of our customers’ feedback,this machine has grown into a high-efficiency,stable and precision spherical grinding machine.
2. The guide way adopts box way type to be designed.It is handled by supersound quenching process,which prolongs the working life and enhances the mechanical property.In order to decrease the friction coefficient of machinery to minimum and ensure the stabilization of the machining accuracy,the plate sliding contact surfaces are plastic coated(teflon).
3. The castings not easily distort,stand wear and tear and have stable property by artificial aging treatment.
4. The CNC control system is adopted so it has a high level of automation and one worker could control more machines.Products quality and working efficiency could be improved.
5. The main spherical material could be processed:A105,2Cr13,304,304L,316,316L,ENP(chemical nickel-plating),Chrome Plating(hard chrome),Tungsten Carbide(wolfram carbide),ceramic sphere.
6. The machine could apply to grinding sphere on a large scale in valve industry.
Specification:
Item | Unit | The main technical parameter |
Maximum diameter of the ball to be ground | mm | Φ80-φ320 |
Maximum bore diameter of the valve ball | Inch | 3” - 8″ |
The distance between the top center line and the table | mm | 250 |
Max weight of the valve ball | Kg | 1000 |
Main shaft Power | kw | 11 |
Main shaft rotary speed range | Rpm | 0～8000 |
Lathe head motor power | kw | 3 |
Lathe head rotary speed range | Rpm | 6-125 |
X/Z axis travel | mm | 300/250 |
Adjustment of the tailstock | mm | 200 |
Tip point of lathe head and tailstock | Mohs 5" | |
Positioning accuracy on X/Z axis | mm | ±0.005 |
Repeat positioning accuracy on X/Z axis | mm | ±0.003 |
Coarse of valve ball | Ra | 0.4-0.2 |
Roundness of valve ball | mm | <0.015 |
Overall dimensions (L*W*H) | mm | 2810×2400×2400 |
Machine weight | Kg | 5000 |
Item | Unit | The main technical parameter |
Maximum diameter of the ball to be ground | mm | Φ300-φ560 |
Maximum bore diameter of the valve ball | Inch | 8” - 16″ |
The distance between the top center line and the table | mm | 315 |
Max weight of the valve ball | Kg | 2800 |
Main shaft Power | kw | 37 |
Main shaft rotary speed range | Rpm | 100～3000 |
Lathe head motor power | kw | 3 |
Lathe head rotary speed range | Rpm | 6-125 |
X/Z axis travel | mm | 500/400 |
Adjustment of the tailstock | mm | 200 |
Tip point of lathe head and tailstock | Mohs 6" | |
Positioning accuracy on X/Z axis | mm | ±0.005 |
Repeat positioning accuracy on X/Z axis | mm | ±0.003 |
Coarse of valve ball | Ra | 0.4-0.2 |
Roundness of valve ball | mm | <0.02 |
Overall dimensions (L*W*H) | mm | 3000×2960×2600 |
Machine weight | Kg | 8000 |
Item | Unit | The main technical parameter |
Maximum diameter of the ball to be ground | Φ560-φ880 | |
Maximum bore diameter of the valve ball | Inch | 16” - 24″ |
The distance between the top center line and the table | mm | 450 |
Max weight of the valve ball | Kg | 3500 |
Main shaft Power | kw | 45 |
Main shaft rotary speed range | Rpm | 100~2500 |
Lathe head motor power | kw | 5.5 |
Lathe head rotary speed range | Rpm | 6-125 |
X/Z axis travel | mm | 800/600 |
Adjustment of the tailstock | mm | 320 |
Tip point of lathe head and tailstock | Mohs6" | |
Positioning accuracy on X/Z axis | mm | ±0.01 |
Repeat positioning accuracy on X/Z axis | mm | ±0.005 |
Coarse of valve ball | Ra | 0.4-0.2 |
Roundness of valve ball | mm | <0.03 |
Overall dimensions (L*W*H) | mm | 4000*2700*2400 |
Machine weight | Kg | 16000 |
We welcome your visit to our factory and have a look at our products.
